• DIMENSIONS: 51’-0” L x 102” W x 13’-6” H WITH 38” DROP

• “SMOOTH SIDE” CONSTRUCTION WITH 125” 5052-H32 ALUMINUM SIDE PANELS

• 12’-0” FIFTH DECK

• ONE PIECE .040” ALUMINUM ROOF SHEETING

• PLASTIC FACED REAR ROLL-UP DOOR

WINDOWS:

• TWO (2) 24” x 36” SINGLE SLIDING TEMPERED CLASS DARK SMOKE #14 WITH SCREEN, CURBSIDE LOUNGE

SUSPENSION:

• DBX 6 WHEEL “AXLELESS” SUSPENSION MODULE

LIFTGATE:

• 3500 LB CAPACITY

• OPTIONAL BALL SCREW OPERATION
• OPTIONAL ALL ALUMINUM FRAME CONSTRUCTION
• 90” x 172” LOAD SURFACE (INCLUDING 90” x 29” FLIP OVER EXTENSION
• HYDRAULIC POWER UNIT WITH 220V AC PUMP

SIDE ACCESS DOOR:

• STEEL DOOR FRAME OPENING (46 ½” W x 64” H)

EXTERIOR FINISH:

• ALL EXTERIOR STEEL IS PRIMERED FINISH

AIR COMPRESSOR PACKAGE:

• 4 ½ HP, 120/240 VAC OPERATION

• 20 GALLON TANK

AIR CONDITIONER PACKAGE:

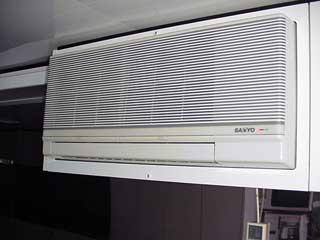

• AIR CONDITIONER IS A SANYO DUAL ZONE WITH ONE EVAPORATOR UNIT IN LOUNGE AND THE OTHER UNIT IN THE SHOP

ELECTRICAL PACKAGE:

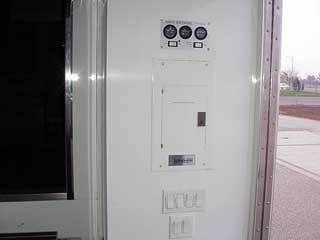

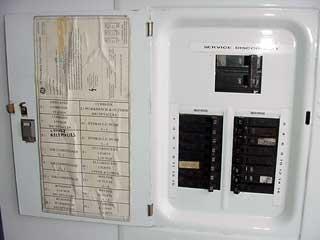

• MAIN BREAKER BOX PANEL IS LOCATED ABOVE NITROGEN BOTTLE STORAGE IN CURBSIDE CABINET IN FRONT OF CURBSIDE DOOR

• EIGHT (8) INTERIOR 110 VAC DUPLEX OUTLETS ON CURBSIDE WALL. THREE (3) ARE LOCATED ABOVE REAR WORK BENCH, TWO (2) ARE LOCATED ABOVE FRONT WORK BENCH, TWO (2) ARE LOCATED ABOVE LAMINATE COUNTER IN DEBRIEFING AREA, AND ONE (1) IN UPPER FRONT CURBSIDE CABINET (FOR RADIO REPEATER)
• SIX (6) INTERIOR 110 VAC DUPLEX OUTLETS ON ROADSIDE WALL. FOUR (4) ARE LOCATED ABOVE WORK BENCH AND TWO (2) ARE LOCATED BELOW OVER HEAD CABINETS IN CREW GALLEY
• TEN (10) 4’ TWO TUBING SURFACE MOUNT FLORESCENT LIGHT FIXTURES MOUNTED IN UPPER DECK AREA. FIVE (5) PER SIDE

EXTERIOR QUARTZ WORK LIGHTS:

• THREE (3) 500 WATT QUARTZ LIGHT FIXTURES

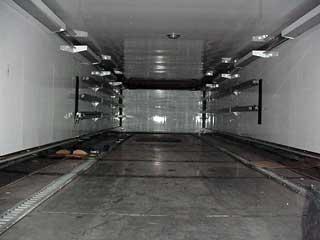

FIXED SOLID SECOND LEVEL DECK:

• SOLID SECOND LEVEL DECKING IS 39’-0” IN LENGTH AND INSTALLED AT A FIXED HEIGHT OF 85” FROM UPPER SIDE OF DECK TO SHOP FLOOR

GENERATOR PACKAGE:

• NOSE MOUNTED, STEEL FRAME GENERATOR BOX WITH FOUR (4) FORMED ALUMINUM ACCESS DOORS (EACH WITH “KEYED ALIKE” POLISHED STAINLESS STEEL LOCKING “T” LATCHES)

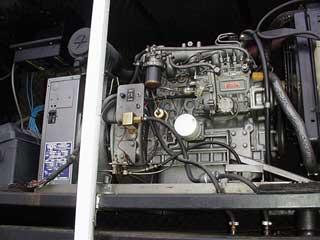

• 20KW “HATZ” WATER COOLED DIESEL GENERATOR MOUNTED IN LOWER COMPARTMENT OF GENERATOR BOX

• PLATFORM SIZE IS 12’-0” LONG X 8’-0” WIDE AND IS LOCATED AT FRONT OF TRAILER

AWNING PACKAGE:

• AWNING SIZE IS 50’-0” IN LENGTH, 20’-0” IN PROJECTION AND IS SETUP FOR CURBSIDE OF TRAILER

• OPTIONAL TRACTOR EXTENSION IS 20’-0” IN LENGTH AND 20’-0” IN PROJECTION. BACK WALL NOT INCLUDED

FENDERS:

• INDIVIDUAL SIX (6) FIBERGLASS HOOP FENDERS

SHOP AREA:

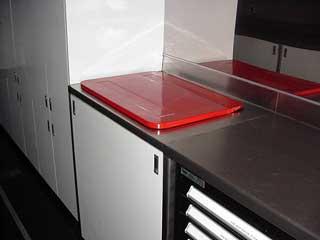

• STAINLESS STEEL WORKBENCH APPROXIMATELY 90” LONG ON CURBSIDE WALL. BEHIND SIDE ACCESS DOOR

• STAINLESS STEEL WORK BENCH APPROXIMATELY 185” LONG ON CURBSIDE WALL, OVER WHEEL BOX AREA

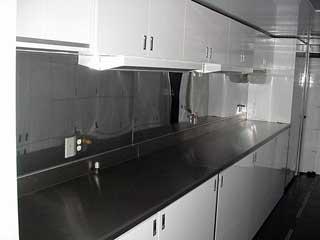

• STAINLESS STEEL WORK BENCH APPROXIMATELY 210” LONG ON ROADSIDE WALL

TIE DOWN PROVISIONS:

• TWO (2) FULL LENGTH RUNS OF SURFACE MOUNT “E” TRACK ON 24” CENTERS ON UPPER SURFACE OF SECOND LEVEL DECK

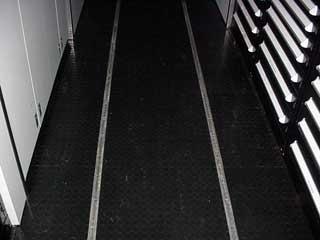

• TWO (2) FULL LENGTH RUNS OF “ANCRA” TRACK ON 24” CENTERS, RECESSED INTO MAIN FLOOR OF SHOP AREA (STOPS AT STAIRWAT INTO DEBRIEFING/LOUNGE AREA)
• TWO (2) LENGTHS OF “ANCRA” TRACK (APPROXIMATELY 36” LONG) ON 24” CENTERS, RECESSED INTO FLOOR. RUNNING PERPENDICULAR TO FULL LENGTH RUNS OF “ANCRA” TRACK AND CENTERED IN FRONT OF CURVSIDE SIDE DOOR OPENING

DEBRIEFING/LOUNGE AREA:

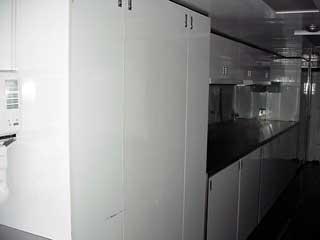

• WARDROBE LOCKER WITH SINGLE DOOR, APPROXIMATELY 30” W x 25” D x 75” H (INCLUDING 3” KICK BOARD) ON CURBSIDE IN FRONT OF PARTITION WALL

• “L” SHAPED LEATHER SOFA IS LOCATED ON ROADSIDE WALL
• TRIANGULAR SHAPED “LIFT OUT” LAMINATE TABLE TOP AND POST AT SOFA LOCATION
• ROADSIDE COMPUTER WORK STATION (OF LAMINATE CONSTRUCTION) LOCATED BETWEEN PARTITION WALL AND “L” SHAPED SOFA

STORAGE LOFT ABOVE DEBRIEFING/LOUNGE AREA:

• “E” TRACK SURFACE MOUNTED TO LOFT AREA WALLS: CENTERED VERTICALLY ON WALLS

ROADSIDE CREW GALLEY:

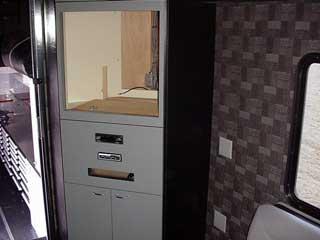

• UNDERCABINET COFFEE MAKER MOUNTED UNDER OVERHEAD CABINET ON FRONT ROADSIDE

• MICROWAVE OVEN MOUNTED UNDER OVERHEAD CABINET ON FRONT ROADSIDE
• REFRIGERATOR (4 CUBIC FOOT, TREE WAY) MOUNTED UNDER COUNTER ON FRONT ROADSIDE

FLOOR COVERING:

• MAIN FLOOR IN SHOP AND FLOOR IN DEBRIEFING/LOUNGE ARE IS BLACK RAISED ROUND DOT RUBBER FLOOR TILES

NITROGEN BOTTLE STORAGE:

• CURBSIDE CABINET IN FRONT OF CURBSIDE DOOR IS TO HOLD THREE (3) “K” SIZE NITROGEN BOTTLES STANDING UPRIGHT (STORAGE ONLY)

TOOL BOXES:

• ALL TOOL BOXES ARE STANLEY-VLIDMAR

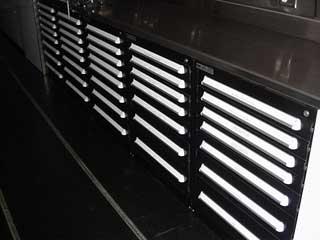

• THREE (3) ROLL OUT TOOL BOXES UNDER ROADSIDE WORK BENCH IN SHOP
• TWO (2) GRADUATED DRAWER MODULES ON FIFTH DECK BEHIND PARTITION WALL. ONE (1) ON CURBSIDE, ONE (1) ON ROADSIDE
